Handheld Portable Ultrasound Therapy Machine for Pain Relief
Pain Relief Portable Devices Therapeutic Physiotherapy Equipment Ultrasound Machine for Physical Therapy
Up to 25% OFF
Potato-based fresh juice
|
Product Name
|
Handheld Portable Ultrasound Therapy Device
|
||
|
Model
|
M25645XT
|
Operation mode
|
Continuous Operation
|
|
Product Size
|
202mm x 49mm x 70mm (LxWxH)
|
Rated Voltage
|
100-240V, 50/60Hz, 600mA
|
|
Overall Weight
|
Approx 336g (with adapter)
|
Adapter Output
|
15V / 1.2A
|
|
PrEffective Radiation Area (AER)
|
4cm²
|
Rated output power
|
4.8W±20% (When duty cycle is 50%)
|
|

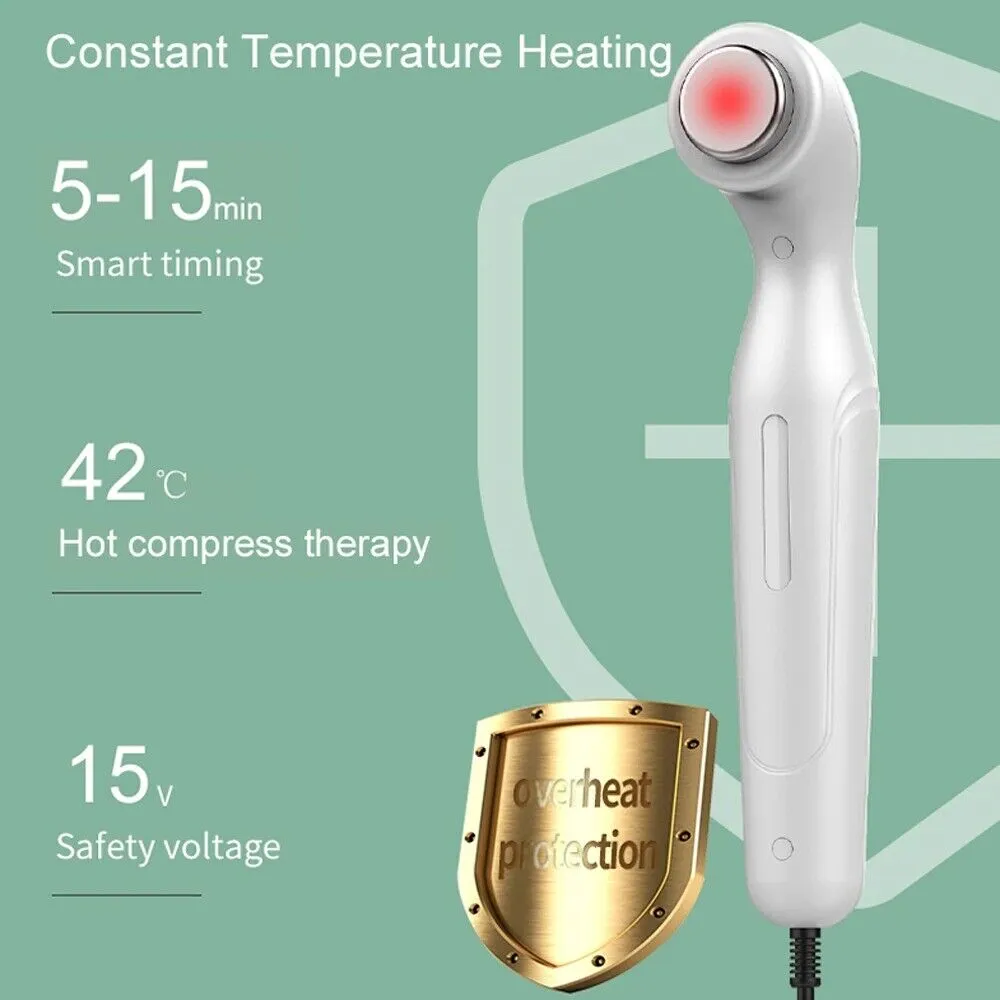

Timing
|
15mins
|
Max output power of time
|
9.6W
|
|
Overheat Protection
|
42 ºC
|
Actual output power
|
(L)2.88w±20% (M)3.84w±20% (H)4.80w±20%
|
|
Level
|
3 Levels (5min/10min/15min)
|
Max sound intensity of beam
|
9.6W/cm²
|
|
Power Range
|
0.5-15W
|
Pulse duration
|
3ms — 4ms — 5ms
|
|
Ration of time max output power to output power
|
2 — 2.5 — 3.33
|
Pulse repetition period
|
10ms
|
|
Mode
|
1 MHz — 82mm depth —- 100 Million Times Micro Massage
|
Acoustic working frequency
|
1MHz±10%
|
|
Pulse repetition rate
|
100Hz±10%
|
||
|
Effective Ultrasound Wave
|
3.0W/cm²
|
Duty cycle
|
Low 30% — Medium 40% — High 50%
|
|
Beam non-uniformity coefficient(RBN)
|
≤8.0
|
Effective sound intensity (Ie)
|
(L)0.72 W/cm²±20% (M)0.96 W/cm²±20%
(H)1.20 W/cm²±20%
|
|
Beam Type
|
Collimating Type
|
Waterproof grade
|
IPX7 (for ultrasonic probe only)
|
|
APPLICATIONS
|
Relieve Pain;ldeal for reducing scar tissue;Cellulite reduction;Reduce inflammation fast;Sciatica pain arthritis pains and joint pain;Sports injuries-Neck & shoulder pains, ankle injuries, groin injuries.
|
||
