Ultrasound – Soundcare Plus –  (USA)

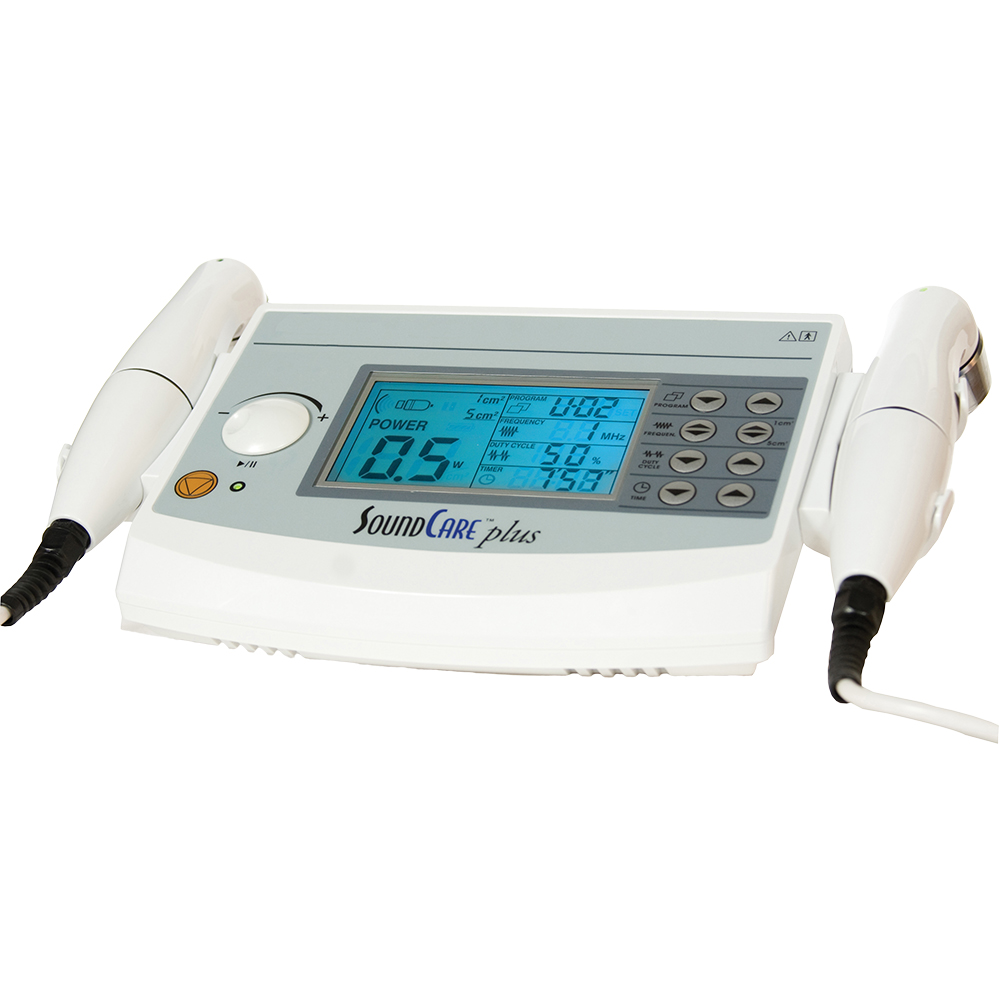

The SoundCare Plus Ultrasound device provides cutting edge ultrasound therapy technology in a budget-conscious and user-friendly package. Providing ultrasound therapy at either 1MHz or 3MHz frequencies, the SoundCare Plus can be used for acute and chronic muscular pain.

The unit comes with two sounds heads that can be used simultaneously for focused treatment. This ultrasound system is easy to use; switch between the active sound heads with just a push of a button. The unit features 20 user-defined presets and an easy to read display panel.
Product Benefits:
Relieves acute and chronic muscular pain
Unit functions on 1MHz and 3 MHz frequencies
Dual sound heads can be used simultaneously
Can switch between sound heads with the push of a button
Features two different sized sound heads for targeted therapy.

Product Specifications for the SoundCare Plus Ultrasound

Acoustic Frequency: 1 MHz ± 10%, 3 MHz ± 10%
Output Power: 0.5 – 10.0 W ± 20%, when duty factor ≥ 80% for 5cm2 0.5 – 15.0 W ± 20%, when duty factor ≤ 70% for 5cm2 0.1 – 2.0 W ± 20%, when duty factor ≥ 80% for 1cm2 0.1 – 3.0 W ± 20%, when duty factor ≤ 70% for 1 cm2
Pulse Repetition Rate: 100 Hz ± 10%
Duty Factor: 10% – 100%, Stepping 10%
Timer: Max 30 minutes
Effective Radiating Area: 5.0 cm2 ± 20%; 1.0 cm2 ± 20%
Actual Intensity: 3.0 w/cm2 ± 20% (1.0 MHz) 3.0 w/cm2 ± 20% (3.0 MHz)
Raw (Max): 5.0
Beam Type: Collimated
Material of Applicator: Aluminum
Waterproof Grade: IPX7 only for treatment head
