Interferential Stimulator (IF-908)
The interferential stimulator (IF) device is a battery operated device that includes two controllable output channels. Amplitude, mode and duration of the electrical impulses can be altered with the buttons or knobs. The controls are protected by a cover in order to prevent accidental changes to the settings. Slide the cover down to make adjustments to the controls.
Up to 25% OFF
Potato-based fresh juice
| MECHANISM | TECHICAL DESCRIPTION |
| Channel | Dual, isolated between channels |
| Dimensions | 107x62x27mm |
| Weight | Approximately 150 grams, battery included |
| Amplitude | Adjustable 0-60mA peak into 500 ohm load each channel,constant current |
| Carrier Frequency | 4000Hz, Fixed (CH1) |
| Modulating Frequency | 4-160bps, Adjustable (CH2) |
| IF Frequency Modes | 9 modes, 1 constant mode, 5 frequency shift modes, 3 auto sweep Modes |
| Constant Mode | 4-160bps, Adjustable |
| Auto Sweep | 4-45 bps 80-145 bps 4-SET bps |
| Frequency Shift | Five modes, 1/1 abrupt shift 6/6 abrupt shift 6/6 ramped 10/10 abrupt shift 10/10 ramped bps adjustable |
| Sweep Time | 15 seconds |
| Frequency Shift Percent | Frequency shifts from 30% below the set frequency to 60% above and then return to 30% below the set frequency. |

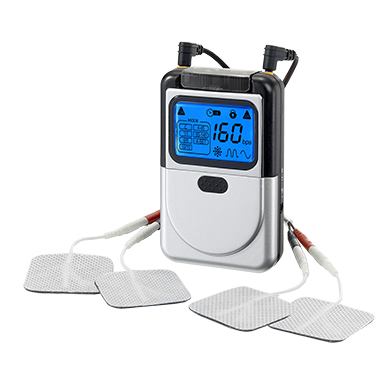

| Output Configuration | Quad polar (4 electrodes) |
| Wave form | Symmetrical Balanced Sine Wave |
| Interference Pulse Frequency |
4-160 bps, Adjustable, 4 bps/step |
| Pulse Duration | 125 µs maximum |
| Patient Compliance Meter | Display total treatment time |
| Lock | Prevents the patient from accidentally changing any of the set parameters |
| Timer | 15, 30 minute selectable |

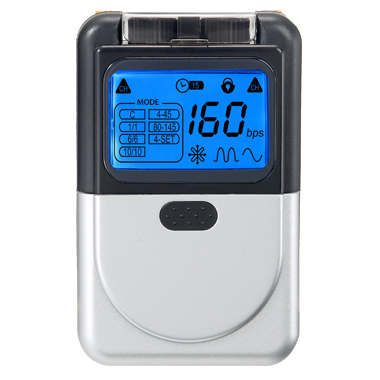

| LCD | Displays mode, bps rate, abrupt/ramp, timer, and channels |
| Max charge per Pulse | 15 Micro-coulombs Maximum |
| Low Battery | A low battery indicator will show when the battery is low. |
| Power Source | 9 Volt DC adapter, 500mA or 9 volt alkaline battery (not recommend due its short life) |
| Tolerance | There may be +/-10% tolerance of settings and 20% tolerance of output. |
